LOM204A - Comunicação entre Cliente/Servidor utilizando Library RADIOHEAD - Não é MESH
O objetivo deste BLOG é demonstrar como é possível utilizar o ARDUINO para programação do WISOL LOM204A e efetuar uma comunicação Cliente/Server. Foram utilizados o 2 KITS LOM204A para os testes.
Horas de muita pesquisa!
BETA - EM TESTES - APENAS PARA PROGRAMADORES ARDUINO QUE CONHEÇAM A LIBRARY RADIOHEAD
Baseado no cmwx1zzabz
Módulo

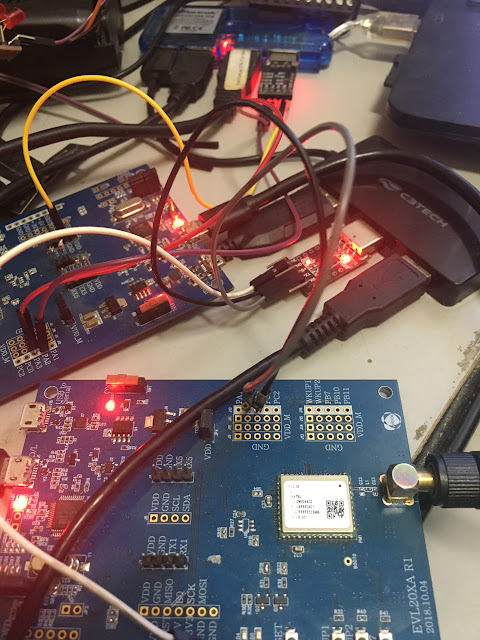

Portado e testado no STARTER KIT LOM204
Cliente/Server - P2P
É uma biblioteca completa orientada a objetos para enviar e receber pacotes de mensagens por meio de uma variedade de rádios de dados e outros transportes em uma variedade de microprocessadores.
DRIVER
Neste caso, será utilizado com o SX1276 o driver RH_ABZ da RADIOHEAD, incorporado no LOM204A
Veja
MANAGER
RHDatagram Addressed
RHReliableDatagram Addressed
RHRouter Multi-hop
RHMesh Multi-hop
PRIMEIROS PASSOS
- INSTALE ARDUINO EM SUA MÁQUINA
- INSTALE O PACOTE PARA STM32L0
https://grumpyoldpizza.github.io/ArduinoCore-stm32l0/package_stm32l0_boards_index.json
ARQUIVO-->PREFERENCIAS-->URLS - INSTALE LIBRARY RADIOHEAD
https://github.com/PaulStoffregen/RadioHead
DESCOMPACTE E COPIE PARA USER USUARIO DOCUMENTS ARDUINO LIBRARIES
CONFIGURAÇÕES PARA SEREM COMPATÍVEIS COM LOM204A
NO ARDUINO, ESCOLHA NUCLEO-L073RZ
ABRA O EXEMPLO EXEMPLO ABZ_CLIENT E ALTERE O CÓDIGO PARA
// abz_client.pde
// -*- mode: C++ -*-
// Example sketch showing how to create a simple messageing client
// with the RH_ABZ class. RH_ABZ class does not provide for addressing or
// reliability, so you should only use RH_ABZ directly if you do not need the higher
// level messaging abilities.
// It is designed to work with the other example abz_server
// Tested with Tested with EcoNode SmartTrap, Arduino 1.8.9, GrumpyOldPizza Arduino Core for STM32L0.
#include <SPI.h>
#include <RH_ABZ.h>
// Singleton instance of the radio driver
RH_ABZ abz;
// Valid for SmartTrap, maybe not other boards
void setup()
{
//MIGUEL
//TCXO - ENABLE
pinMode(24, OUTPUT);
digitalWrite(24, HIGH);
Serial.begin(9600);
// Wait for serial port to be available
// If you do this, it will block here until a USB serial connection is made.
// If not, it will continue without a Serial connection, but DFU mode will not be available
// to the host without resetting the CPU with the Boot button
// while (!Serial) ;
// You must be sure that the TCXO settings are appropriate for your board and radio.
// See the RH_ABZ documentation for more information.
// This call is adequate for Tlera boards supported by the Grumpy Old Pizza Arduino Core
// It may or may not be innocuous for others
SX1276SetBoardTcxo(true);
delay(1);
if (!abz.init())
Serial.println("init failed");
// Defaults after init are 434.0MHz, 13dBm, Bw = 125 kHz, Cr = 4/5, Sf = 128chips/symbol, CRC on
abz.setFrequency(868.0);
// You can change the modulation speed etc from the default
//abz.setModemConfig(RH_RF95::Bw125Cr45Sf128);
//abz.setModemConfig(RH_RF95::Bw125Cr45Sf2048);
// The default transmitter power is 13dBm, using PA_BOOST.
// You can set transmitter powers from 2 to 20 dBm:
//abz.setTxPower(20); // Max power
}
void loop()
{
Serial.println("Sending to abz_server");
// Send a message to abz_server
uint8_t data[] = "Hello World!";
abz.send(data, sizeof(data));
abz.waitPacketSent();
// Now wait for a reply
uint8_t buf[RH_RF95_MAX_MESSAGE_LEN];
uint8_t len = sizeof(buf);
// You might need a longer timeout for slow modulatiuon schemes and/or long messages
if (abz.waitAvailableTimeout(3000))
{
// Should be a reply message for us now
if (abz.recv(buf, &len))
{
Serial.print("got reply: ");
Serial.println((char*)buf);
// Serial.print("RSSI: ");
// Serial.println(abz.lastRssi(), DEC);
}
else
{
Serial.println("recv failed");
}
}
else
{
Serial.println("No reply, is abz_server running?");
}
delay(400);
}
ABRA O EXEMPLO EXEMPLO ABZ_SERVER E ALTERE O CÓDIGO PARA
// abz_server.pde
// -*- mode: C++ -*-
// Example sketch showing how to create a simple messageing server
// with the RH_ABZ class. RH_ABZ class does not provide for addressing or
// reliability, so you should only use RH_ABZ directly if you do not need the higher
// level messaging abilities.
// It is designed to work with the other example abz_server
// Tested with Tested with EcoNode SmartTrap, Arduino 1.8.9, GrumpyOldPizza Arduino Core for STM32L0.
#include <SPI.h>
#include <RH_ABZ.h>
// Singleton instance of the radio driver
RH_ABZ abz;
void setup()
{
//MIGUEL
//TCXO - ENABLE
pinMode(24, OUTPUT);
digitalWrite(24, HIGH);
Serial.begin(9600);
// Wait for serial port to be available
// If you do this, it will block here until a USB serial connection is made.
// If not, it will continue without a Serial connection, but DFU mode will not be available
// to the host without resetting the CPU with the Boot button
// while (!Serial) ;
// You must be sure that the TCXO settings are appropriate for your board and radio.
// See the RH_ABZ documentation for more information.
// This call is adequate for Tlera boards supported by the Grumpy Old Pizza Arduino Core
// It may or may not be innocuous for others
SX1276SetBoardTcxo(true);
delay(1);
if (!abz.init())
Serial.println("init failed");
// Defaults after init are 434.0MHz, 13dBm, Bw = 125 kHz, Cr = 4/5, Sf = 128chips/symbol, CRC on
abz.setFrequency(868.0);
// You can change the modulation speed etc from the default
//abz.setModemConfig(RH_RF95::Bw125Cr45Sf128);
//abz.setModemConfig(RH_RF95::Bw125Cr45Sf2048);
// The default transmitter power is 13dBm, using PA_BOOST.
// You can set transmitter powers from 2 to 20 dBm:
//abz.setTxPower(20); // Max power
}
void loop()
{
if (abz.available())
{
// Should be a message for us now
uint8_t buf[RH_RF95_MAX_MESSAGE_LEN];
uint8_t len = sizeof(buf);
if (abz.recv(buf, &len))
{
// RH_ABZ::printBuffer("request: ", buf, len);
Serial.print("got request: ");
Serial.println((char*)buf);
// Serial.print("RSSI: ");
// Serial.println(abz.lastRssi(), DEC);
// Send a reply
uint8_t data[] = "And hello back to you";
abz.send(data, sizeof(data));
abz.waitPacketSent();
Serial.println("Sent a reply");
}
else
{
Serial.println("recv failed");
}
}
}
ALTERE VARIANT.H PARA
/*
* Copyright (c) 2017-2018 Thomas Roell. All rights reserved.
*
* Permission is hereby granted, free of charge, to any person obtaining a copy
* of this software and associated documentation files (the "Software"), to
* deal with the Software without restriction, including without limitation the
* rights to use, copy, modify, merge, publish, distribute, sublicense, and/or
* sell copies of the Software, and to permit persons to whom the Software is
* furnished to do so, subject to the following conditions:
*
* 1. Redistributions of source code must retain the above copyright notice,
* this list of conditions and the following disclaimers.
* 2. Redistributions in binary form must reproduce the above copyright
* notice, this list of conditions and the following disclaimers in the
* documentation and/or other materials provided with the distribution.
* 3. Neither the name of Thomas Roell, nor the names of its contributors
* may be used to endorse or promote products derived from this Software
* without specific prior written permission.
*
* THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
* IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
* FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE
* CONTRIBUTORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
* LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING
* FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS
* WITH THE SOFTWARE.
*/
#ifndef _VARIANT_NUCLEO_STM32L073RZ_
#define _VARIANT_NUCLEO_STM32L073RZ_
/*----------------------------------------------------------------------------
* Definitions
*----------------------------------------------------------------------------*/
#define STM32L0_CONFIG_LSECLK 32768
#define STM32L0_CONFIG_HSECLK 0
#define STM32L0_CONFIG_SYSOPT 0
/** Master clock frequency */
#define VARIANT_MCK F_CPU
/*----------------------------------------------------------------------------
* Headers
*----------------------------------------------------------------------------*/
#ifdef __cplusplus
#include "Uart.h"
#endif // __cplusplus
#ifdef __cplusplus
extern "C"
{
#endif // __cplusplus
/*----------------------------------------------------------------------------
* Pins
*----------------------------------------------------------------------------*/
// Number of pins defined in PinDescription array
//MIGUEL
#define PINS_COUNT (25u)
#define NUM_DIGITAL_PINS (16u)
#define NUM_ANALOG_INPUTS (6u)
#define NUM_ANALOG_OUTPUTS (0u)
// LEDs
#define PIN_LED (13ul)
#define LED_BUILTIN PIN_LED
/*
* Analog pins
*/
#define PIN_A0 (16ul)
#define PIN_A1 (17ul)
#define PIN_A2 (18ul)
#define PIN_A3 (19ul)
#define PIN_A4 (20ul)
#define PIN_A5 (21ul)
static const uint8_t A0 = PIN_A0;
static const uint8_t A1 = PIN_A1;
static const uint8_t A2 = PIN_A2;
static const uint8_t A3 = PIN_A3;
static const uint8_t A4 = PIN_A4;
static const uint8_t A5 = PIN_A5;
#define ADC_RESOLUTION 12
/*
* Other pins
*/
#define PIN_BUTTON (22l)
static const uint8_t BUTTON = PIN_BUTTON;
/*
* Serial interfaces
*/
#define SERIAL_INTERFACES_COUNT 2
#define PIN_SERIAL_RX (0ul)
#define PIN_SERIAL_TX (1ul)
#define PIN_SERIAL_RX (0ul)
#define PIN_SERIAL_TX (1ul)
#define PIN_SERIAL1_RX (2ul)
#define PIN_SERIAL1_TX (8ul)
/*
* SPI Interfaces
*/
#define SPI_INTERFACES_COUNT 1
#define PIN_SPI_MISO (12u)
#define PIN_SPI_MOSI (11u)
#define PIN_SPI_SCK (13u)
//MIGUEL
static const uint8_t SS = (18u);
static const uint8_t MOSI = PIN_SPI_MOSI;
static const uint8_t MISO = PIN_SPI_MISO;
static const uint8_t SCK = PIN_SPI_SCK;
/*
* Wire Interfaces
*/
#define WIRE_INTERFACES_COUNT 1
#define PIN_WIRE_SDA (14u)
#define PIN_WIRE_SCL (15u)
static const uint8_t SDA = PIN_WIRE_SDA;
static const uint8_t SCL = PIN_WIRE_SCL;
#define PWM_INSTANCE_COUNT 2
#ifdef __cplusplus
}
#endif
/*----------------------------------------------------------------------------
* Arduino objects - C++ only
*----------------------------------------------------------------------------*/
#ifdef __cplusplus
extern Uart Serial;
extern Uart Serial1;
#endif
// These serial port names are intended to allow libraries and architecture-neutral
// sketches to automatically default to the correct port name for a particular type
// of use. For example, a GPS module would normally connect to SERIAL_PORT_HARDWARE_OPEN,
// the first hardware serial port whose RX/TX pins are not dedicated to another use.
//
// SERIAL_PORT_MONITOR Port which normally prints to the Arduino Serial Monitor
//
// SERIAL_PORT_USBVIRTUAL Port which is USB virtual serial
//
// SERIAL_PORT_LINUXBRIDGE Port which connects to a Linux system via Bridge library
//
// SERIAL_PORT_HARDWARE Hardware serial port, physical RX & TX pins.
//
// SERIAL_PORT_HARDWARE_OPEN Hardware serial ports which are open for use. Their RX & TX
// pins are NOT connected to anything by default.
#define SERIAL_PORT_MONITOR Serial
#define SERIAL_PORT_HARDWARE1 Serial
#define SERIAL_PORT_HARDWARE2 Serial1
#define SERIAL_PORT_HARDWARE_OPEN2 Serial1
#endif /*_VARIANT_NUCLEO_STM32L073RZ_ */
ALTERE RH_ABZ.CPP PARA
// RH_ABZ.cpp
//
// Copyright (C) 2020 Mike McCauley
// $Id: RH_ABZ.cpp,v 1.1 2020/06/15 23:39:39 mikem Exp $
#if (RH_PLATFORM == RH_PLATFORM_STM32L0) && (defined STM32L082xx || defined STM32L072xx)
#include <RH_ABZ.h>
// Pointer to the _only_ permitted ABZ instance (there is only one radio connected to this device)
RH_ABZ* RH_ABZ::_thisDevice;
// The muRata cmwx1zzabz module has its builtin SX1276 radio connected to the processor's SPI1 port,
// but the Arduino compatible SPI interface in Grumpy Pizzas Arduino Core is configured for SPI1 or SPI2
// depending on the exact board variant selected.
// So here we define our own Arduino compatible SPI interface
// so we are _sure_ to get the one connected to the radio, independent of the board variant selected
#include <stm32l0_spi.h>
static const stm32l0_spi_params_t RADIO_SPI_PARAMS = {
STM32L0_SPI_INSTANCE_SPI1,
0,
STM32L0_DMA_CHANNEL_NONE,
STM32L0_DMA_CHANNEL_NONE,
{
STM32L0_GPIO_PIN_PA7_SPI1_MOSI,
STM32L0_GPIO_PIN_PA6_SPI1_MISO,
STM32L0_GPIO_PIN_PA5_SPI1_SCK,
STM32L0_GPIO_PIN_NONE,
},
};
// Create and configure an Arduino compatible SPI interface. This will be referred to in RHHardwareSPI.cpp
// and used as the SPI interface to the radio.
static stm32l0_spi_t RADIO_SPI;
SPIClass radio_spi(&RADIO_SPI, &RADIO_SPI_PARAMS);
// Glue code between the 'C' DIO0 interrupt and the C++ interrupt handler in RH_RF95
void RH_INTERRUPT_ATTR RH_ABZ::isr()
{
_thisDevice->handleInterrupt();
}
RH_ABZ::RH_ABZ():
RH_RF95(RH_INVALID_PIN, RH_INVALID_PIN)
{
}
bool RH_ABZ::init()
{
_thisDevice = this;
// REVISIT: RESET THE RADIO???
// The SX1276 radio DIO0 is connected to STM32 pin PB4
// It will later be configured as an interrupt
//MIGUEL
stm32l0_gpio_pin_configure(STM32L0_GPIO_PIN_PA12, (STM32L0_GPIO_PARK_NONE | STM32L0_GPIO_PUPD_PULLDOWN | STM32L0_GPIO_OSPEED_HIGH | STM32L0_GPIO_OTYPE_PUSHPULL | STM32L0_GPIO_MODE_INPUT));
// Here we configure the interrupt handler for DIO0 to call the C++
// interrupt handler in RH_RF95, in a roundabout way
#ifdef STM32L0_EXTI_CONTROL_PRIORITY_CRITICAL
//MIGUEL
stm32l0_exti_attach(STM32L0_GPIO_PIN_PA12, (STM32L0_EXTI_CONTROL_PRIORITY_CRITICAL | STM32L0_EXTI_CONTROL_EDGE_RISING), (stm32l0_exti_callback_t)isr, NULL); // STM32L0_EXTI_CONTROL_PRIORITY_CRITICAL not in 0.0.10
#else
//MIGUEL
stm32l0_exti_attach(STM32L0_GPIO_PIN_PA12, STM32L0_EXTI_CONTROL_EDGE_RISING, (stm32l0_exti_callback_t)isr, NULL);
#endif
//MIGUEL
// The SX1276 radio slave select (NSS) is connected to STM32 pin PA15
stm32l0_gpio_pin_configure(STM32L0_GPIO_PIN_PA4, (STM32L0_GPIO_PARK_HIZ | STM32L0_GPIO_PUPD_NONE | STM32L0_GPIO_OSPEED_HIGH | STM32L0_GPIO_OTYPE_PUSHPULL | STM32L0_GPIO_MODE_OUTPUT));
// muRata cmwx1zzabz module has an antenna switch which must be driven the right way to connect the antenna
// to the appropriate SX1276 pins.
// Antenna switch might be something like NJG180K64, but not sure.
// See Application note: AN-ZZABZ-001 P. 20/20
// in typeABZ_hardware_design_guide_revC.pdf
// with 3 pins connected to STM32L0_GPIO_PIN_PA1, STM32L0_GPIO_PIN_PC2, STM32L0_GPIO_PIN_PC1
// which select RX, RFO or PA_BOOST respecitvely
// See modeWillChange() for implementation of pin twiddling when the transmitter is on
//
// We use native STM32 calls because the various different variants in the Grumpy Pizza
// Arduino core and various forks of that core have inconsistent definitions of the Arduino compatible
// pins. We want to be sure we get the right ones for the muRata modules connections to the Radio
//MIGUEL*
stm32l0_gpio_pin_configure(STM32L0_GPIO_PIN_PA15, (STM32L0_GPIO_PARK_NONE | STM32L0_GPIO_PUPD_NONE | STM32L0_GPIO_OSPEED_LOW | STM32L0_GPIO_OTYPE_PUSHPULL | STM32L0_GPIO_MODE_OUTPUT));
//MIGUEL*
stm32l0_gpio_pin_configure(STM32L0_GPIO_PIN_PC2, (STM32L0_GPIO_PARK_NONE | STM32L0_GPIO_PUPD_NONE | STM32L0_GPIO_OSPEED_LOW | STM32L0_GPIO_OTYPE_PUSHPULL | STM32L0_GPIO_MODE_OUTPUT));
//MIGUEL*
stm32l0_gpio_pin_configure(STM32L0_GPIO_PIN_PC1, (STM32L0_GPIO_PARK_NONE | STM32L0_GPIO_PUPD_NONE | STM32L0_GPIO_OSPEED_LOW | STM32L0_GPIO_OTYPE_PUSHPULL | STM32L0_GPIO_MODE_OUTPUT));
return RH_RF95::init();
}
void RH_ABZ::selectSlave()
{
//MIGUEL
stm32l0_gpio_pin_write(STM32L0_GPIO_PIN_PA4, 0);
}
void RH_ABZ::deselectSlave()
{
//MIGUEL
stm32l0_gpio_pin_write(STM32L0_GPIO_PIN_PA4, 1);
}
bool RH_ABZ::modeWillChange(RHMode mode)
{
if (mode == RHModeTx)
{
// Tell the antenna switch to connect to one of thetransmoitter output pins
//MIGUEL - medir sinal do RF..
stm32l0_gpio_pin_write(STM32L0_GPIO_PIN_PA15, 0); // RX
stm32l0_gpio_pin_write(STM32L0_GPIO_PIN_PC2, _useRFO ? 1 : 0); // RFO
stm32l0_gpio_pin_write(STM32L0_GPIO_PIN_PC1, _useRFO ? 0 : 1); // BOOST
}
else
{
// Enabling the RX from the antenna switch improves reception RSSI by about 5
//MIGUEL
stm32l0_gpio_pin_write(STM32L0_GPIO_PIN_PA15, 1); // RX
stm32l0_gpio_pin_write(STM32L0_GPIO_PIN_PC2, 0); // RFO
stm32l0_gpio_pin_write(STM32L0_GPIO_PIN_PC1, 0); // BOOST
}
return true;
}
#endif
ALTERE VARIANT.CPP PARA
/*
* Copyright (c) 2017-2018 Thomas Roell. All rights reserved.
*
* Permission is hereby granted, free of charge, to any person obtaining a copy
* of this software and associated documentation files (the "Software"), to
* deal with the Software without restriction, including without limitation the
* rights to use, copy, modify, merge, publish, distribute, sublicense, and/or
* sell copies of the Software, and to permit persons to whom the Software is
* furnished to do so, subject to the following conditions:
*
* 1. Redistributions of source code must retain the above copyright notice,
* this list of conditions and the following disclaimers.
* 2. Redistributions in binary form must reproduce the above copyright
* notice, this list of conditions and the following disclaimers in the
* documentation and/or other materials provided with the distribution.
* 3. Neither the name of Thomas Roell, nor the names of its contributors
* may be used to endorse or promote products derived from this Software
* without specific prior written permission.
*
* THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
* IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
* FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE
* CONTRIBUTORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
* LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING
* FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS
* WITH THE SOFTWARE.
*/
#include "Arduino.h"
#include "wiring_private.h"
#define PWM_INSTANCE_TIM2 0
#define PWM_INSTANCE_TIM3 1
/*
* Pins descriptions
*/
extern const PinDescription g_APinDescription[PINS_COUNT] =
{
// 0..13 - Digital pins
{ GPIOA, STM32L0_GPIO_PIN_MASK(STM32L0_GPIO_PIN_PA3), STM32L0_GPIO_PIN_PA3, 0, PWM_INSTANCE_NONE, PWM_CHANNEL_NONE, ADC_CHANNEL_NONE },
{ GPIOA, STM32L0_GPIO_PIN_MASK(STM32L0_GPIO_PIN_PA2), STM32L0_GPIO_PIN_PA2, 0, PWM_INSTANCE_NONE, PWM_CHANNEL_NONE, ADC_CHANNEL_NONE },
{ GPIOA, STM32L0_GPIO_PIN_MASK(STM32L0_GPIO_PIN_PA10), STM32L0_GPIO_PIN_PA10, (PIN_ATTR_EXTI), PWM_INSTANCE_NONE, PWM_CHANNEL_NONE, ADC_CHANNEL_NONE },
{ GPIOB, STM32L0_GPIO_PIN_MASK(STM32L0_GPIO_PIN_PB3), STM32L0_GPIO_PIN_PB3_TIM2_CH2, (PIN_ATTR_EXTI), PWM_INSTANCE_TIM2, PWM_CHANNEL_2, ADC_CHANNEL_NONE },
{ GPIOB, STM32L0_GPIO_PIN_MASK(STM32L0_GPIO_PIN_PB5), STM32L0_GPIO_PIN_PB5, (PIN_ATTR_EXTI), PWM_INSTANCE_NONE, PWM_CHANNEL_NONE, ADC_CHANNEL_NONE },
{ GPIOB, STM32L0_GPIO_PIN_MASK(STM32L0_GPIO_PIN_PB4), STM32L0_GPIO_PIN_PB4_TIM3_CH1, 0, PWM_INSTANCE_TIM3, PWM_CHANNEL_1, ADC_CHANNEL_NONE },
{ GPIOB, STM32L0_GPIO_PIN_MASK(STM32L0_GPIO_PIN_PB10), STM32L0_GPIO_PIN_PB10_TIM2_CH3, 0, PWM_INSTANCE_TIM2, PWM_CHANNEL_3, ADC_CHANNEL_NONE },
{ GPIOA, STM32L0_GPIO_PIN_MASK(STM32L0_GPIO_PIN_PA8), STM32L0_GPIO_PIN_PA8, (PIN_ATTR_EXTI), PWM_INSTANCE_NONE, PWM_CHANNEL_NONE, ADC_CHANNEL_NONE },
{ GPIOA, STM32L0_GPIO_PIN_MASK(STM32L0_GPIO_PIN_PA9), STM32L0_GPIO_PIN_PA9, (PIN_ATTR_EXTI), PWM_INSTANCE_NONE, PWM_CHANNEL_NONE, ADC_CHANNEL_NONE },
{ GPIOC, STM32L0_GPIO_PIN_MASK(STM32L0_GPIO_PIN_PC7), STM32L0_GPIO_PIN_PC7_TIM3_CH2, (PIN_ATTR_EXTI), PWM_INSTANCE_TIM3, PWM_CHANNEL_2, ADC_CHANNEL_NONE },
{ GPIOB, STM32L0_GPIO_PIN_MASK(STM32L0_GPIO_PIN_PB6), STM32L0_GPIO_PIN_PB6, (PIN_ATTR_EXTI), PWM_INSTANCE_NONE, PWM_CHANNEL_NONE, ADC_CHANNEL_NONE },
{ GPIOA, STM32L0_GPIO_PIN_MASK(STM32L0_GPIO_PIN_PA7), STM32L0_GPIO_PIN_PA7, 0, PWM_INSTANCE_NONE, PWM_CHANNEL_NONE, ADC_CHANNEL_NONE },
{ GPIOA, STM32L0_GPIO_PIN_MASK(STM32L0_GPIO_PIN_PA6), STM32L0_GPIO_PIN_PA6, 0, PWM_INSTANCE_NONE, PWM_CHANNEL_NONE, ADC_CHANNEL_NONE },
{ GPIOA, STM32L0_GPIO_PIN_MASK(STM32L0_GPIO_PIN_PA5), STM32L0_GPIO_PIN_PA5, 0, PWM_INSTANCE_NONE, PWM_CHANNEL_NONE, ADC_CHANNEL_NONE },
// 14..15 - I2C pins (SDA,SCL)
{ GPIOB, STM32L0_GPIO_PIN_MASK(STM32L0_GPIO_PIN_PB9), STM32L0_GPIO_PIN_PB9, 0, PWM_INSTANCE_NONE, PWM_CHANNEL_NONE, ADC_CHANNEL_NONE },
{ GPIOB, STM32L0_GPIO_PIN_MASK(STM32L0_GPIO_PIN_PB8), STM32L0_GPIO_PIN_PB8, 0, PWM_INSTANCE_NONE, PWM_CHANNEL_NONE, ADC_CHANNEL_NONE },
// 16..21 - Analog pins
{ GPIOA, STM32L0_GPIO_PIN_MASK(STM32L0_GPIO_PIN_PA0), STM32L0_GPIO_PIN_PA0, 0, PWM_INSTANCE_NONE, PWM_CHANNEL_NONE, ADC_CHANNEL_0 },
{ GPIOA, STM32L0_GPIO_PIN_MASK(STM32L0_GPIO_PIN_PA1), STM32L0_GPIO_PIN_PA1, 0, PWM_INSTANCE_NONE, PWM_CHANNEL_NONE, ADC_CHANNEL_1 },
{ GPIOA, STM32L0_GPIO_PIN_MASK(STM32L0_GPIO_PIN_PA4), STM32L0_GPIO_PIN_PA4, (PIN_ATTR_EXTI), PWM_INSTANCE_NONE, PWM_CHANNEL_NONE, ADC_CHANNEL_4 },
{ GPIOB, STM32L0_GPIO_PIN_MASK(STM32L0_GPIO_PIN_PB0), STM32L0_GPIO_PIN_PB0, (PIN_ATTR_EXTI), PWM_INSTANCE_NONE, PWM_CHANNEL_NONE, ADC_CHANNEL_8 },
{ GPIOC, STM32L0_GPIO_PIN_MASK(STM32L0_GPIO_PIN_PC1), STM32L0_GPIO_PIN_PC1, (PIN_ATTR_EXTI), PWM_INSTANCE_NONE, PWM_CHANNEL_NONE, ADC_CHANNEL_11 },
{ GPIOC, STM32L0_GPIO_PIN_MASK(STM32L0_GPIO_PIN_PC0), STM32L0_GPIO_PIN_PC0, 0, PWM_INSTANCE_NONE, PWM_CHANNEL_NONE, ADC_CHANNEL_10 },
// 22 - Button
{ GPIOC, STM32L0_GPIO_PIN_MASK(STM32L0_GPIO_PIN_PC13), STM32L0_GPIO_PIN_PC13, (PIN_ATTR_EXTI | PIN_ATTR_WKUP1), PWM_INSTANCE_NONE, PWM_CHANNEL_NONE, ADC_CHANNEL_NONE },
//MIGUEL - DIO0 - INTERRUPT
{ GPIOA, STM32L0_GPIO_PIN_MASK(STM32L0_GPIO_PIN_PA12), STM32L0_GPIO_PIN_PA12, 0, PWM_INSTANCE_NONE, PWM_CHANNEL_NONE, ADC_CHANNEL_NONE },
//TCXO
{ GPIOB, STM32L0_GPIO_PIN_MASK(STM32L0_GPIO_PIN_PB1), STM32L0_GPIO_PIN_PB1, 0, PWM_INSTANCE_NONE, PWM_CHANNEL_NONE, ADC_CHANNEL_NONE },
};
extern const unsigned int g_PWMInstances[PWM_INSTANCE_COUNT] = {
STM32L0_TIMER_INSTANCE_TIM2,
STM32L0_TIMER_INSTANCE_TIM3,
};
static uint8_t stm32l0_usart2_rx_fifo[32];
extern const stm32l0_uart_params_t g_SerialParams = {
STM32L0_UART_INSTANCE_USART2,
STM32L0_UART_IRQ_PRIORITY,
STM32L0_DMA_CHANNEL_DMA1_CH6_USART2_RX,
STM32L0_DMA_CHANNEL_DMA1_CH4_USART2_TX,
&stm32l0_usart2_rx_fifo[0],
sizeof(stm32l0_usart2_rx_fifo),
{
STM32L0_GPIO_PIN_PA3_USART2_RX,
STM32L0_GPIO_PIN_PA2_USART2_TX,
STM32L0_GPIO_PIN_NONE,
STM32L0_GPIO_PIN_NONE,
},
};
static uint8_t stm32l0_usart1_rx_fifo[32];
extern const stm32l0_uart_params_t g_Serial1Params = {
STM32L0_UART_INSTANCE_USART1,
STM32L0_UART_IRQ_PRIORITY,
STM32L0_DMA_CHANNEL_DMA1_CH5_USART1_RX,
STM32L0_DMA_CHANNEL_NONE,
&stm32l0_usart1_rx_fifo[0],
sizeof(stm32l0_usart1_rx_fifo),
{
STM32L0_GPIO_PIN_PA10_USART1_RX,
STM32L0_GPIO_PIN_PA9_USART1_TX,
STM32L0_GPIO_PIN_NONE,
STM32L0_GPIO_PIN_NONE,
},
};
extern const stm32l0_spi_params_t g_SPIParams = {
STM32L0_SPI_INSTANCE_SPI1,
STM32L0_SPI_IRQ_PRIORITY,
STM32L0_DMA_CHANNEL_DMA1_CH2_SPI1_RX,
STM32L0_DMA_CHANNEL_DMA1_CH3_SPI1_TX,
{
STM32L0_GPIO_PIN_PA7_SPI1_MOSI,
STM32L0_GPIO_PIN_PA6_SPI1_MISO,
STM32L0_GPIO_PIN_PA5_SPI1_SCK,
STM32L0_GPIO_PIN_NONE,
},
};
extern const stm32l0_i2c_params_t g_WireParams = {
STM32L0_I2C_INSTANCE_I2C1,
STM32L0_I2C_IRQ_PRIORITY,
STM32L0_DMA_CHANNEL_DMA1_CH7_I2C1_RX,
STM32L0_DMA_CHANNEL_NONE,
{
STM32L0_GPIO_PIN_PB8_I2C1_SCL,
STM32L0_GPIO_PIN_PB9_I2C1_SDA,
},
};
void initVariant()
{
}
GRAVANDO (ST-LINK V2)
PRESSIONE O RESET ASSIM QUE O ARDUINO ACIONAR O OPENOCD
RESULTADOS
PA2 (TX) PA3(RX)
VÍDEOMONTAGEMDÚVIDASFORUMS RADIOHEADREFERÊNCIASSobre a SMARTCOREA SmartCore fornece módulos para comunicação wireless, biometria, conectividade, rastreamento e automação.Nosso portfólio inclui modem 2G/3G/4G/NB-IoT/Cat.M, satelital, módulos WiFi, Bluetooth, GNSS / GPS, Sigfox, LoRa, leitor de cartão, leitor QR code, mecanismo de impressão, mini-board PC, antena, pigtail, LCD, bateria, repetidor GPS e sensores.Mais detalhes em www.smartcore.com.br
Nenhum comentário:
Postar um comentário
